Introduction

In the previous lesson, you learned the three-step GDS workflow: Project → Run → Write. You saw how this pattern enables fast, safe, iterative analysis by separating your source data from algorithmic operations.

This lesson focuses exclusively on Step 1: Projection—the foundation of all GDS work.

By the end of this lesson, you will understand:

  • How Cypher projections work in detail

  • What graph structures you’re creating when you project

  • Why different projection types matter for algorithms

Algorithm requirements drive projection choices

Different algorithms have different requirements for graph structure. Some algorithms work optimally on monopartite graphs (single node type), while others are designed for bipartite graphs (two distinct node types). As you learn projection techniques throughout this module, keep in mind that your projection choices should be guided by which algorithms you plan to use. You’ll learn more about algorithm-specific requirements in Module 3.

Cypher Projection Anatomy

Let’s revisit the example from the previous lesson and break it down completely.

cypher
Basic Cypher projection example
MATCH (source:Actor)-[r:ACTED_IN]->(target:Movie) // (1)
WITH gds.graph.project( // (2)
  'actors-graph', // (3)
  source, // (4)
  target // (5)
) AS g
RETURN g.graphName AS graph, g.nodeCount AS nodes, g.relationshipCount AS rels // (6)

Projection breakdown

  1. Match Actor nodes connected to Movie nodes via ACTED_IN relationships

  2. Call the GDS projection function

  3. Name the projection 'actors-graph'

  4. Include source nodes (Actors) in the projection

  5. Include target nodes (Movies) in the projection

  6. Return projection statistics

This projection has three main components:

1. The Cypher Pattern

cypher
Match the pattern
MATCH (source:Actor)-[r:ACTED_IN]->(target:Movie) // (1)

Query breakdown

  1. Match Actor nodes connected to Movie nodes via ACTED_IN relationships

This is standard Cypher. You’re matching a pattern in your database:

  • source nodes with the Actor label

  • target nodes with the Movie label

  • ACTED_IN relationships connecting them

The variable names source and target are important—you’ll reference them in the projection.

However, just like the writeProperty value we created in the previous lesson, these variables are inherently arbitrary.

We could run the following, equally valid projection:

While this works, we recommend using descriptive names like source and target in production code for clarity and maintainability.
cypher
Projection with custom variable names
MATCH (bananas:Actor)-[:ACTED_IN]->(cabbages:Movie) // (1)
WITH gds.graph.project( // (2)
  'bananas-cabbages', // (3)
  bananas, // (4)
  cabbages // (5)
) AS g
RETURN g.graphName AS graph, g.nodeCount AS nodes, g.relationshipCount AS rels // (6)

Projection breakdown

  1. Match Actor and Movie nodes with arbitrary variable names

  2. Call the GDS projection function

  3. Name the projection 'actors-graph'

  4. Include bananas (Actor) nodes in the projection

  5. Include cabbages (Movie) nodes in the projection

  6. Return projection statistics

The query returns the projection statistics: the graph name 'bananas-cabbages', the number of nodes (sum of Actor and Movie nodes), and the number of ACTED_IN relationships projected.

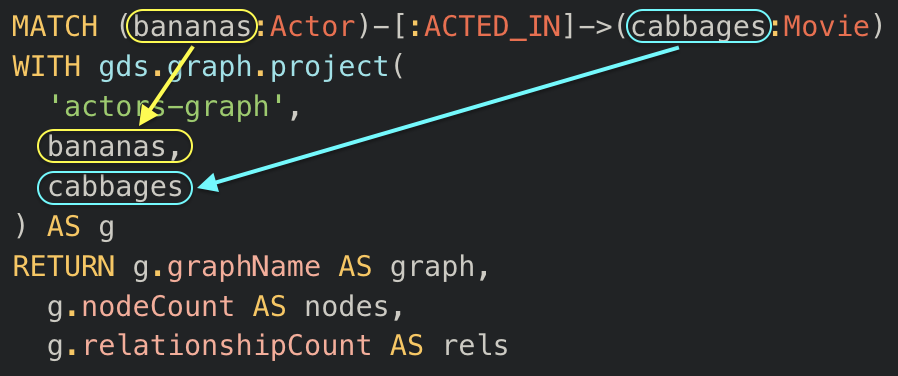

The variables you use for the nodes in your Cypher query, are the variables you will call as nodes in the graph projection.

a Cypher projection

As a general standard we use source and target only because many other projection configuration settings will refer to the first variable as source and the second as target.

Defaulting to source and target for the initial variables just makes it easier to keep track.

2. The projection call

cypher
Project with configuration options
WITH gds.graph.project( // (1)
  'projection-call', // (2)
  source, // (3)
  target, // (4)
  {}, // (5)
  {} // (6)
) AS g

Projection breakdown

  1. Call the GDS projection function

  2. Name the projection 'actors-graph'

  3. Include source nodes in the projection

  4. Include target nodes in the projection

  5. First configuration map (for relationship properties)

  6. Second configuration map (for projection options)

The WITH clause pipes your matched pattern into gds.graph.project():

'actors-graph': The name you’ll use to reference this projection when running algorithms

source: Nodes matched by your source variable become nodes in the projection

target: Nodes matched by your target variable also become nodes in the projection

Relationships: Automatically inferred from the pattern between source and target

The curly brackets are there to house your other configuration settings. To create a simple projection, you do not need them. In fact, you could rewrite the same projection command without even referencing them.

cypher
Simplified projection without configuration
WITH gds.graph.project( // (1)
  'actors-graph', // (2)
  source, // (3)
  target // (4)
) AS g

Projection breakdown

  1. Call the GDS projection function

  2. Name the projection 'actors-graph'

  3. Include source nodes in the projection

  4. Include target nodes in the projection

We include them here just to acknowledge them, and remind you that they still exist in the background.

3. The return statement

You have already dealt with this — it’s really no different from your normal return query when using pure Cypher.

cypher
Return projection metadata
RETURN g.graphName AS graph, g.nodeCount AS nodes, g.relationshipCount AS rels // (1)

Query breakdown

  1. Return the graph name, node count, and relationship count

This returns metadata about your projection:

  • How many nodes were projected

  • How many relationships were created

  • The graph name for verification

Try it yourself

Now that you understand how projections work, copy and paste the following query into the sandbox.

Replace the ????? placeholders with the correct values and run it to project a graph of Actors who ACTED_IN Movies:

cypher
Complete the projection (replace ????? with correct values)
MATCH (source:?????)-[r:ACTED_IN]->(target:?????) // (1)
WITH gds.graph.project( // (2)
  'my-projection', // (3)
  ?????, // (4)
  ????? // (5)
) AS g
RETURN g.graphName AS graph, g.nodeCount AS nodes, g.relationshipCount AS rels // (6)

Projection breakdown

  1. Match source and target nodes (fill in the labels)

  2. Call the GDS projection function

  3. Name the projection 'my-projection'

  4. Include source nodes (fill in the variable)

  5. Include target nodes (fill in the variable)

  6. Return projection statistics

Once you’ve completed the query, run it to verify your projection was created successfully.

If you need help filling in the query, open the dropdown below for the full solution.

Details
cypher
Solution: Complete projection
MATCH (source:Actor)-[r:ACTED_IN]->(target:Movie) // (1)
WITH gds.graph.project( // (2)
  'my-projection', // (3)
  source, // (4)
  target // (5)
) AS g
RETURN g.graphName AS graph, g.nodeCount AS nodes, g.relationshipCount AS rels // (6)

  1. Match Actor nodes connected to Movie nodes via ACTED_IN relationships

  2. Call the GDS projection function

  3. Name the projection 'my-projection'

  4. Include source (Actor) nodes in the projection

  5. Include target (Movie) nodes in the projection

  6. Return projection statistics

Key points:

  • source:Actor matches Actor nodes

  • target:Movie matches Movie nodes

  • Pass source and target variables into gds.graph.project()

  • The ACTED_IN relationships are automatically inferred from your MATCH pattern

What’s next

You now understand how Cypher projections work: you match a pattern with standard Cypher, then pipe it into gds.graph.project() to create an in-memory graph.

But there’s an important detail about what you’ve just projected that might surprise you.

In the next lesson, you’ll learn about different graph structure types and discover what type of graph your actors-movies projection actually created.

Check your understanding

Understanding Projection Components

You run this projection:

cypher
MATCH (source:Author)-[r:WROTE]->(target:Article)
WITH gds.graph.project('research-network', source, target) AS g
RETURN g.graphName, g.nodeCount, g.relationshipCount

What nodes are included in the 'research-network' projection?

  • ❏ Only Author nodes

  • ❏ Only Article nodes

  • ✓ Both Author nodes and Article nodes

  • ❏ All nodes in the database

Hint

Look at what variables are passed into gds.graph.project(). Both source and target are included.

Solution

Both Author nodes and Article nodes is correct.

When you pass source and target to gds.graph.project(), both sets of matched nodes become part of the projection:

  • source (Author nodes) are included

  • target (Article nodes) are included

  • The WROTE relationships between them are automatically inferred

This creates a bipartite graph with both node types.

Summary

Cypher projections use standard MATCH patterns to define which nodes and relationships to project into memory. The basic syntax is: MATCH (source)-[r]→(target) WITH gds.graph.project('name', source, target).

A projection has three components:

  1. Cypher pattern - Standard MATCH defining which nodes and relationships to include

  2. Projection call - WITH gds.graph.project() piping the matched pattern into GDS

  3. Return statement - Returns metadata about the created projection

In the next lesson, you’ll learn about different graph structure types and how GDS handles them.
