Identifying Nodes from Tables

In this lesson, you will decide which tables become nodes, which become relationships, and which become properties or stay out.

Understanding the Northwind Database Schema

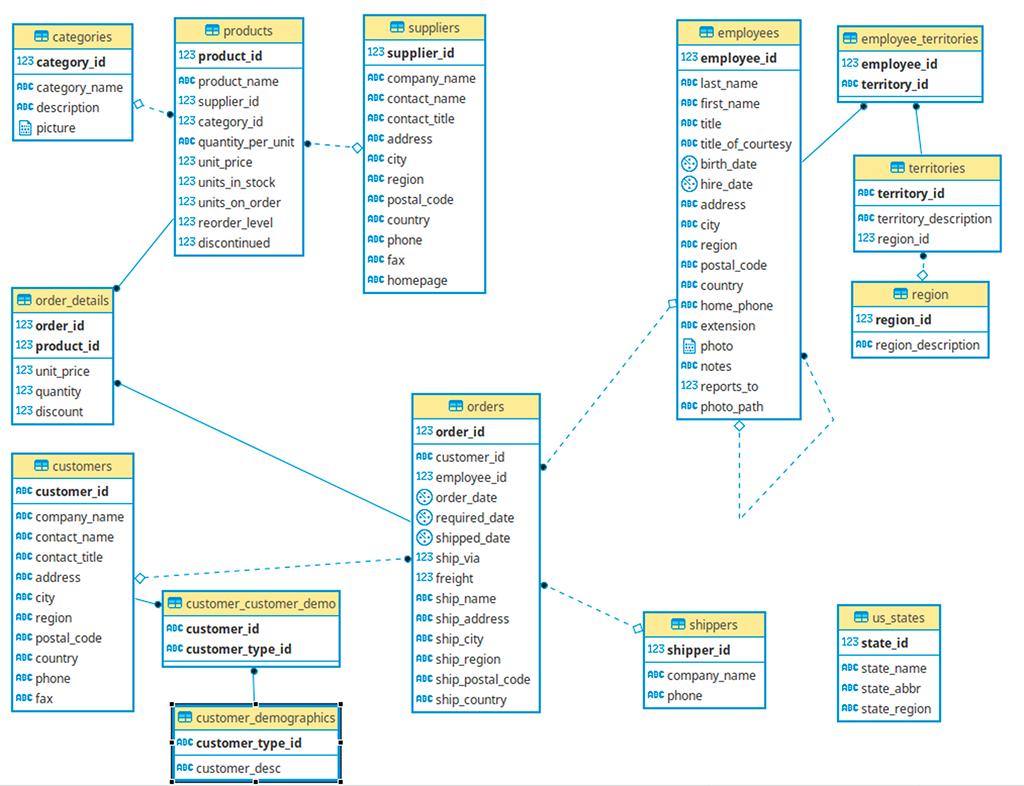

Northwind Entity-Relationship Diagram showing all tables and their relationships

Northwind is a small sample schema. First identify entity tables (customers, products), junction tables (order_details), and lookup tables.

Understanding the Mapping

How relational concepts map to graph concepts:

Relational Concept Graph Concept Explanation

Entity table

Node label

A table like customers becomes the Customer node label

Row (record)

Node instance

Each row in the customers table becomes an individual Customer node

Column (attribute)

Property

Columns like company_name and city become properties on the node

Foreign key column

Relationship

A column like customer_id in the orders table becomes a PLACED relationship

Junction table

Relationship (often with properties)

Tables like order_details become relationships like CONTAINS

As covered in Module 1

Rows → node instances; columns → properties; foreign keys → relationships. Columns do not become relationships.

From Tables to Nodes

As covered in Module 1: entity tables become nodes, junction tables become relationships, lookup tables may become properties or small nodes. The following sections apply this to Northwind.

Analyzing Northwind Tables

Northwind table categories:

Tables That Become Nodes

These tables represent distinct business entities and should become nodes:

Table Node Label Reasoning

customers

Customer

Represents companies that place orders - a core business entity

orders

Order

Represents purchase transactions - central to the business process

products

Product

Represents items for sale - a core business entity

categories

Category

Represents product groupings - useful for navigation and filtering

suppliers

Supplier

Represents companies providing products - important business relationship

employees

Employee

Represents staff members - needed for order processing and hierarchy

shippers

Shipper

Represents delivery companies - part of the order fulfillment process

Tables That Become Relationships

These tables exist primarily to connect other entities and do NOT become nodes:

Table Becomes Reasoning

order_details

CONTAINS relationship (Order to Product)

Junction table connecting orders to products. The quantity, unit_price, and discount columns become properties on the relationship.

employee_territories

ASSIGNED_TO relationship (Employee to Territory)

Pure junction table with only two foreign keys - no additional data to store.

customer_customer_demo

HAS_DEMOGRAPHIC relationship (Customer to Demographics)

Junction table for customer classifications with no additional properties.

Junction tables become relationships, not nodes

Junction tables link two entities (many-to-many). They represent the connection, not a separate entity. In a graph, that’s a relationship—optionally with properties.

Tables That Become Properties (Not Nodes)

Some tables fit better as properties on other nodes:

Table Becomes Reasoning

us_states

Not imported (or properties if needed)

Reference data with state codes and names. If needed, state_name could be a property on Customer or Supplier nodes instead of a separate node.

customer_demographics

Property or label on Customer

Contains only customer_type_id and customer_desc. Instead of creating a separate node, the description could become a property or additional label on Customer nodes.

Tables That Could Go Either Way

Some tables depend on your query patterns. Decide as follows:

Table Consideration

territories

As nodes: If you need to query "which employees cover territory X?" or "what territories are in region Y?" then Territory nodes make sense.

As properties: If you only need to know an employee’s territory name, store it as a property on the Employee node or the ASSIGNED_TO relationship.

region

As nodes: Useful if you need geographic hierarchy traversal (Employee to Territory to Region).

As properties: If regions are just labels, store region_name as a property on Territory nodes.

Node vs Property: A Visual Guide

Property for static filters; node when you traverse or query it independently.

Option 1: Store as a property

When a value is a simple label or category with few distinct values, storing it as a property keeps the model simple:

Product with language as a property: language stored as 'English' or 'French'

Option 2: Model as a separate node

Model as a node when you traverse to it (e.g. "products in Category X") or query it independently. Connect with a relationship:

Language as a separate node connected to Product nodes

When to choose which: * Property: Static reference data, simple filters, few distinct values (e.g. region, status) * Node: You need to traverse to it, query it independently, or it has its own properties and relationships (e.g. Category, Supplier)

When Tables Should NOT Become Nodes

Here are common scenarios where tables should not become nodes:

Scenario 1: Pure Junction Tables

A table with only foreign keys and no meaningful additional data should become a relationship.

Example: employee_territories

sql
CREATE TABLE employee_territories (
    employee_id INTEGER,
    territory_id VARCHAR(20),
    PRIMARY KEY (employee_id, territory_id)
);

This table has no additional columns - it only connects employees to territories. It becomes:

(Employee)-[:ASSIGNED_TO]->(Territory)

Scenario 2: Lookup Tables with Few Values

Small reference tables with static values can often be eliminated.

Example: customer_demographics

sql
CREATE TABLE customer_demographics (
    customer_type_id VARCHAR(10) PRIMARY KEY,
    customer_desc TEXT
);

If this table only has 3-5 values like "Premium", "Standard", "Basic", consider:

  • Using node labels instead: (:Customer:Premium), (:Customer:Standard)

  • Using a property: (c:Customer {customerType: "Premium"})

Scenario 3: Audit/Log Tables

Tables that track changes or history may not belong in the main graph.

Example: An order_audit table tracking who modified orders and when:

  • If you rarely query this data, keep it in the relational database

  • If you need it, consider a separate audit graph or time-series database

Scenario 4: Denormalized Reference Data

Tables created purely for reporting or denormalization may be redundant.

Example: A customer_order_summary table with pre-calculated totals:

  • This data can be calculated with Cypher queries

  • No need to import redundant summary tables

Step-by-Step Node Identification

Follow these steps to identify nodes in any relational schema:

Step 1: Identify Primary Entities

Look for tables that:

  • Have a single-column primary key (e.g., customer_id, order_id)

  • Represent real-world objects or concepts

  • Are referenced by other tables via foreign keys

In Northwind, these are: customers, orders, products, categories, suppliers, employees, shippers

Step 2: Examine Junction Tables

Junction tables typically have:

  • Composite primary keys (two or more columns)

  • Foreign keys to two or more other tables

  • Few or no additional columns beyond the keys

In Northwind, order_details is a junction table connecting orders and products.

Step 3: Decide on Junction Table Handling

For each junction table, decide whether it should become:

A relationship - when the table primarily connects two entities:

order_details becomes CONTAINS relationship from Order to Product

A node - when the junction table has significant properties or is queried independently:

If order_details had complex data like shipment tracking,
it might warrant its own OrderLine node

Step 4: Handle Lookup Tables

Small lookup tables can be:

  • Nodes - if you need to query or traverse them

  • Properties - if they’re just labels or categories

  • Node labels - if they represent types of another entity

The Northwind Graph Model

Based on this analysis, the Northwind graph model will include:

Node Labels

  • Customer - from customers table

  • Order - from orders table

  • Product - from products table

  • Category - from categories table

  • Supplier - from suppliers table

  • Employee - from employees table

  • Shipper - from shippers table

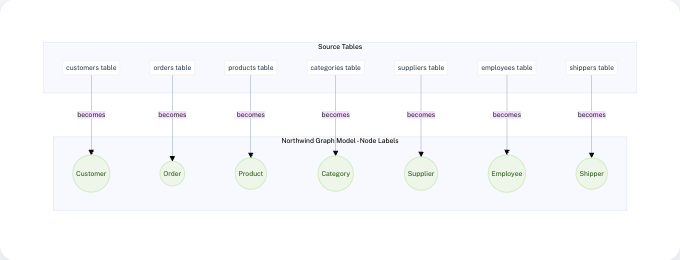

Northwind Node Labels - Tables becoming graph nodes

Simplified Model

For this course, you will focus on the core business entities. The simplified model excludes:

  • Territory and region data (can be added as an extension)

  • Customer demographics (rarely used in the sample data)

  • US states reference data

This keeps the import manageable while covering all the relevant concepts.

Naming Conventions

When converting table names to node labels:

Convention Example Notes

Singular form

Customer not Customers

Nodes represent individual entities

PascalCase

OrderDetail not order_detail

Standard Neo4j naming convention

Descriptive names

Category not Cat

Clear, readable labels

Check Your Understanding

Tables to Nodes

Which type of relational table typically becomes a relationship instead of a node in a graph model?

  • ❏ Entity tables with a single primary key

  • ✓ Junction tables that connect two other tables

  • ❏ Lookup tables with reference data

  • ❏ Tables with many columns

Hint

Junction tables (e.g. order_details) exist to connect two other tables and usually have composite primary keys made of foreign keys; in a graph they become relationships, not nodes.

Solution

Junction tables, also called associative tables or bridge tables, typically become relationships in a graph model. These tables exist to implement many-to-many relationships in relational databases and usually have composite primary keys made up of foreign keys to other tables.

For example, order_details connects orders and products and becomes the CONTAINS relationship in the graph.

Relational to Graph Mapping

In a relational database, each row in the customers table represents one customer. When migrating to Neo4j, what does each row become?

  • ❏ A property on the Customer node

  • ❏ A relationship between nodes

  • ✓ An individual Customer node instance

  • ❏ A node label

Hint

Each row in a relational table maps to one node instance in the graph; the table name becomes the node label, and the row’s columns become properties on that node.

Solution

Each row in a relational table becomes an individual node instance in the graph.

For example: * The customers table with 91 rows becomes 91 individual Customer nodes * Each row’s columns such as company_name and city become properties on that specific node

The correct mapping is: * Table becomes node label * Row becomes node instance * Column becomes property * Foreign key becomes relationship

Tables That Do Not Become Nodes

Which of the following scenarios would typically NOT result in creating a node in the graph? Select all that apply.

  • ✓ A junction table with only two foreign key columns

  • ❏ A table representing customers with contact information

  • ✓ A small lookup table with 3 static values like "High", "Medium", "Low"

  • ✓ An audit log table tracking record modifications

  • ❏ A table representing products with pricing and inventory data

Hint

Junction tables with only foreign keys become relationships. Small lookup tables and audit logs often become properties or are omitted from the main graph; core entity tables such as customers and products become nodes.

Solution

The following typically do NOT become nodes:

  • Junction tables with only foreign keys - These become relationships. Example: employee_territories becomes an ASSIGNED_TO relationship.

  • Small lookup tables with static values - These can become node labels or properties instead. Example: Priority levels such as High, Medium, and Low can be a property on the node.

  • Audit log tables - These often do not belong in the main graph model and may be kept in the relational database or a separate system.

Tables representing customers and products DO become nodes because they are core business entities with meaningful properties.

Summary

In this lesson, you learned:

  • How to categorize relational tables as entities, junction tables, or lookup tables

  • Which Northwind tables will become nodes in the graph

  • How to handle junction tables (as relationships or nodes)

  • Naming conventions for node labels

In the next lesson, you will map the foreign key relationships to graph relationships.
