Exploring Dashboards

Loading the movie recommendations dataset

Dashboards visualize data from your Neo4j instance. Before creating dashboards for your movie recommendation system, load the movie recommendations dataset using the provided Cypher script.

Movie data

The sample data should be loaded into your database using the provided Cypher script, not the Import service.

The Movies dataset contains movies, actors, directors, genres, and ratings—exactly what you need to build dashboards that visualize insights.

Step 1: Open the Query tool

To load data using a Cypher script, connect to the Query tool:

In the console, click Query in the left menu

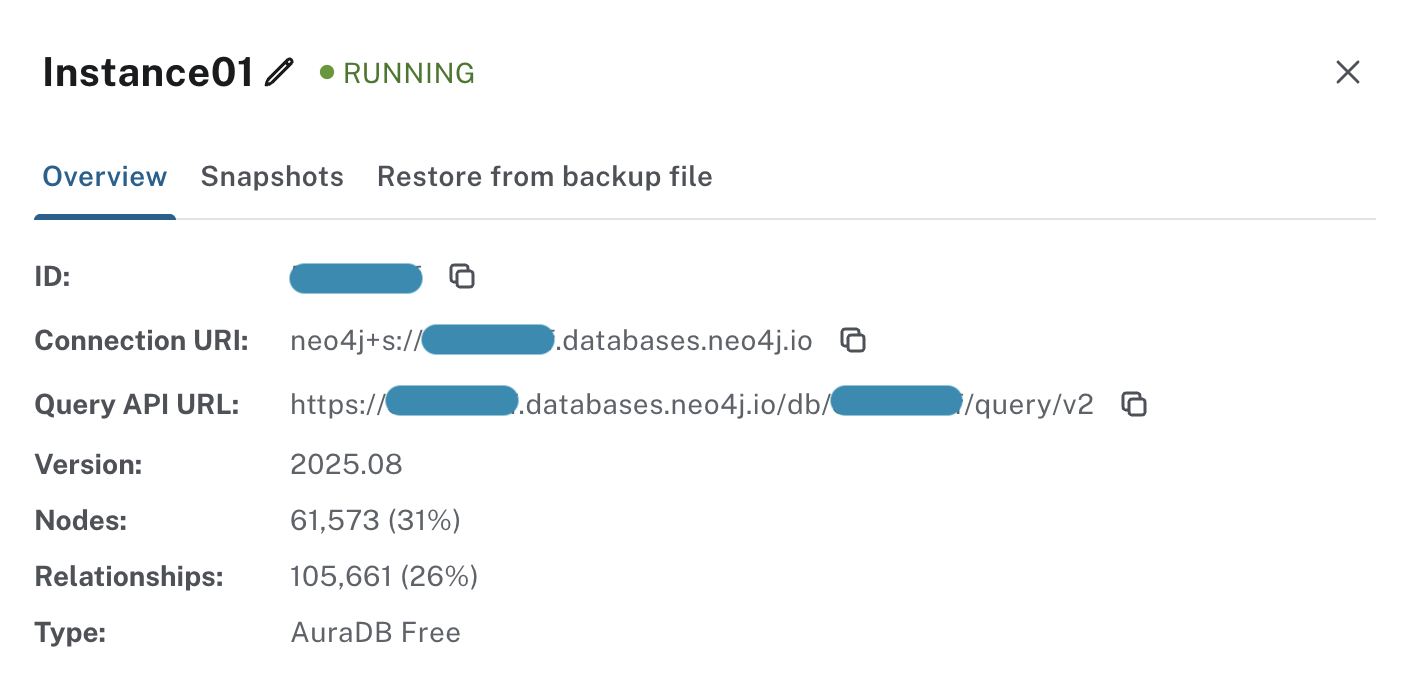

Connect to your instance using your credentials
Enter your connection details in the connection dialog

Any Cypher script you run will execute against the connected Neo4j instance.

Step 2: Load the sample data

Copy the Cypher script below into the Query Editor
Click Run to execute it

cypher

:param {
  // Define the file path root and the individual file names required for loading.
  // file_path_root:'file:///', Use this for local import
  file_path_root:'https://raw.githubusercontent.com/neo4j-graphacademy/recommendations-extend/refs/heads/main/recommendations-extended/data/csv/',
  file_person:'recommendations-nodes-Person.csv',
  file_movie:'recommendations-nodes-Movie.csv',
  file_user:'recommendations-nodes-User.csv',
  file_genre:'recommendations-nodes-Genre.csv',
  file_acted_in:'recommendations-relationships-ACTED_IN.csv',
  file_directed:'recommendations-relationships-DIRECTED.csv',
  file_rated:'recommendations-relationships-RATED.csv',
  file_in_genre:'recommendations-relationships-IN_GENRE.csv'
};

// CONSTRAINT creation
// -------------------
CREATE CONSTRAINT tmdbId_Person_uniq IF NOT EXISTS
FOR (n:Person)
REQUIRE (n.tmdbId) IS UNIQUE;
CREATE CONSTRAINT movieId_Movie_uniq IF NOT EXISTS
FOR (n:Movie)
REQUIRE (n.movieId) IS UNIQUE;
CREATE CONSTRAINT userId_User_uniq IF NOT EXISTS
FOR (n:User)
REQUIRE (n.userId) IS UNIQUE;
CREATE CONSTRAINT name_Genre_uniq IF NOT EXISTS
FOR (n:Genre)
REQUIRE (n.name) IS UNIQUE;


// INDEX creation
// -------------------
CREATE INDEX name_Person IF NOT EXISTS
FOR (n:Person)
ON (n.name);
CREATE INDEX tmdbId_Movie IF NOT EXISTS
FOR (n:Movie)
ON (n.tmdbId);
CREATE INDEX released_Movie IF NOT EXISTS
FOR (n:Movie)
ON (n.released);
CREATE INDEX imdbRating_Movie IF NOT EXISTS
FOR (n:Movie)
ON (n.imdbRating);
CREATE INDEX title_Movie IF NOT EXISTS
FOR (n:Movie)
ON (n.title);
CREATE INDEX year_Movie IF NOT EXISTS
FOR (n:Movie)
ON (n.year);
CREATE INDEX imdbId_Movie IF NOT EXISTS
FOR (n:Movie)
ON (n.imdbId);
CREATE INDEX name_User IF NOT EXISTS
FOR (n:User)
ON (n.name);

// NODE load
// ---------
LOAD CSV WITH HEADERS FROM ($file_path_root + $file_person) AS row
WITH row
CALL (row) {
  MERGE (n:Person { tmdbId:toInteger(trim(row.tmdbId)) })
  SET n.tmdbId = toInteger(trim(row.tmdbId))
  SET n.name = row.name
  SET n.bornIn = row.bornIn
  SET n.born = CASE row.born WHEN "" THEN null ELSE date(row.born) END
  SET n.died = CASE row.died WHEN "" THEN null ELSE date(row.died) END
  SET n.imdbId = toInteger(trim(row.imdbId))
  SET n.url = row.url
  SET n.bio = row.bio
  SET n.poster = row.poster
} IN TRANSACTIONS OF 10000 ROWS;

LOAD CSV WITH HEADERS FROM ($file_path_root + $file_movie) AS row
WITH row
CALL (row) {
  MERGE (n:Movie { movieId:toInteger(trim(row.movieId)) })
  SET n.movieId = toInteger(trim(row.movieId))
  SET n.title = row.title
  SET n.url = row.url
  SET n.runtime = toInteger(trim(row.runtime))
  SET n.revenue = toInteger(trim(row.revenue))
  SET n.budget = toInteger(trim(row.budget))
  SET n.imdbRating = toFloat(trim(row.imdbRating))
  SET n.released = row.released
  SET n.countries = row.countries
  SET n.languages = row.languages
  SET n.plot = row.plot
  SET n.imdbVotes = toInteger(trim(row.imdbVotes))
  SET n.imdbId = toInteger(trim(row.imdbId))
  SET n.year = toInteger(trim(row.year))
  SET n.poster = row.poster
  SET n.tmdbId = toInteger(trim(row.tmdbId))
} IN TRANSACTIONS OF 10000 ROWS;

LOAD CSV WITH HEADERS FROM ($file_path_root + $file_user) AS row
WITH row
CALL (row) {
  MERGE (n:User { userId:toInteger(trim(row.userId)) })
  SET n.userId = toInteger(trim(row.userId))
  SET n.name = row.name
} IN TRANSACTIONS OF 10000 ROWS;

LOAD CSV WITH HEADERS FROM ($file_path_root + $file_genre) AS row
WITH row
CALL (row) {
  MERGE (n:Genre { name:row.name })
  SET n.name = row.name
} IN TRANSACTIONS OF 10000 ROWS;


// RELATIONSHIP load
// -----------------
//
LOAD CSV WITH HEADERS FROM ($file_path_root + $file_acted_in) AS row
WITH row
CALL (row) {
  MATCH (source:Person { tmdbId:toInteger(trim(row.person_tmdbId)) })
  MATCH (target:Movie { movieId:toInteger(trim(row.movie_movieId)) })
  MERGE (source)-[r:ACTED_IN]->(target)
  SET r.role = row.role
} IN TRANSACTIONS OF 10000 ROWS;

LOAD CSV WITH HEADERS FROM ($file_path_root + $file_directed) AS row
WITH row
CALL (row) {
  MATCH (source:Person { tmdbId:toInteger(trim(row.person_tmdbId)) })
  MATCH (target:Movie { movieId:toInteger(trim(row.movie_movieId)) })
  MERGE (source)-[r:DIRECTED]->(target)
} IN TRANSACTIONS OF 10000 ROWS;

LOAD CSV WITH HEADERS FROM ($file_path_root + $file_rated) AS row
WITH row
CALL (row) {
  MATCH (source:User { userId:toInteger(trim(row.user_userId)) })
  MATCH (target:Movie { movieId:toInteger(trim(row.movie_movieId)) })
  MERGE (source)-[r:RATED]->(target)
  SET r.rating = toFloat(trim(row.rating))
} IN TRANSACTIONS OF 10000 ROWS;

LOAD CSV WITH HEADERS FROM ($file_path_root + $file_in_genre) AS row
WITH row
CALL (row) {
  MATCH (source:Movie { movieId:toInteger(trim(row.movie_movieId)) })
  MATCH (target:Genre { name:row.genre_name })
  MERGE (source)-[r:IN_GENRE]->(target)
} IN TRANSACTIONS OF 10000 ROWS;

MATCH (p:Person)-[:ACTED_IN]-()
SET p:Actor;

MATCH (p:Person)-[:DIRECTED]-()
SET p:Director;

Once the script has finished running, you will see a summary of the nodes and relationships created in your Aura instance.

Step 3: Verify the data

Run this command to view the database schema:

cypher

CALL db.schema.visualization

This will display a visualization of the database schema, showing the nodes and relationships that have been created.

In the Query tool results, view the graph visualization of your schema.

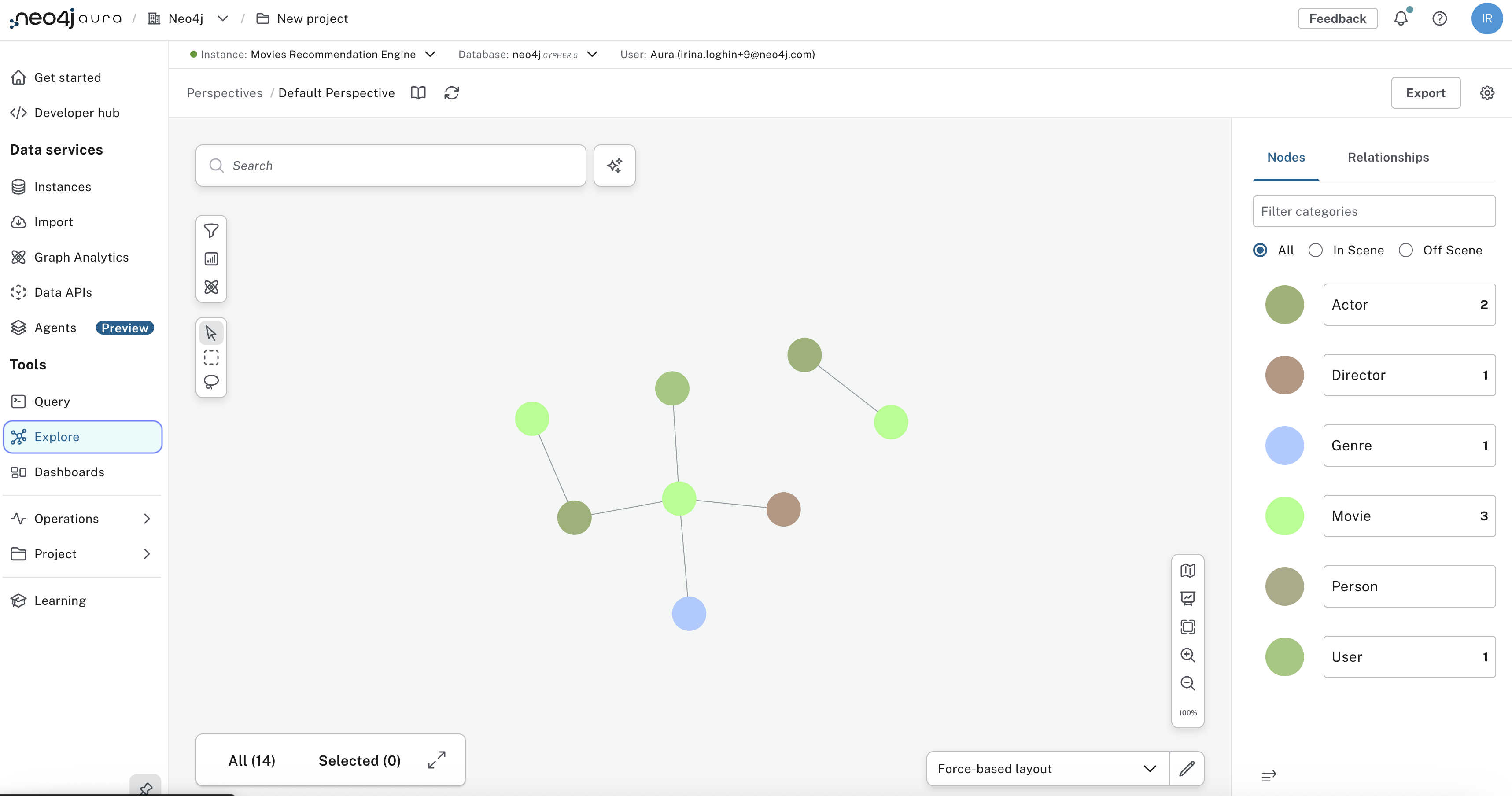

Go to the Explore tab to visualize and explore the data you have just loaded:

Generating your first movie recommendation dashboard

With the movie data loaded, create your first dashboard using the AI tool. This dashboard will visualize insights about your movie recommendation dataset.

Go to Dashboards in the left menu
Click Create dashboard → Create with AI
Read and accept the AI disclaimer
Enter a prompt describing what you want to visualize about your movie recommendation data, for example: "Visualize movie recommendations based on user ratings and genres" or "Show comedy movies and their ratings"
Click Generate

Take time to explore the different cards and visualizations before continuing to the next lesson.

Check your understanding

Requirements for creating dashboards

You want to create a dashboard for your movie recommendation system that visualizes movie ratings and genre popularity. What is required before you can build this dashboard?

❏ You must upgrade to Business Critical tier
❏ You need to create a separate instance for each dashboard
✓ You need to load the movie recommendations dataset into your instance
❏ You must write complex Cypher queries before creating any visualizations

Hint

Dashboards visualize data from your Neo4j instance. Before creating dashboards, you must have data loaded. For the movie recommendation system, you need the movie dataset loaded using the provided Cypher script.

Solution

You need to load the movie recommendations dataset into your instance.

Before creating dashboards, you must have data in your instance. For your movie recommendation dashboard, load the movie dataset using the provided Cypher script.

Summary

In this lesson, you loaded the movie recommendations dataset into your instance and generated your first dashboard using AI. This dashboard visualizes insights about movies, ratings, and genres that will help stakeholders understand recommendation patterns.

In the next lesson, you will learn how to:

Describe your movie data model to understand what insights to visualize
Design dashboards that align with stakeholder requirements for your recommendation system
